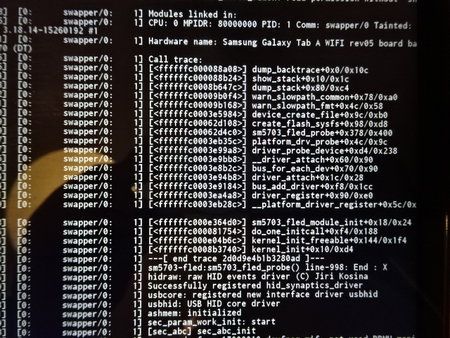

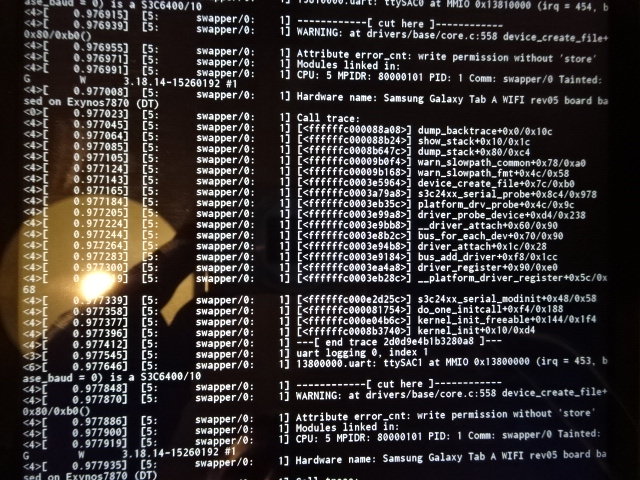

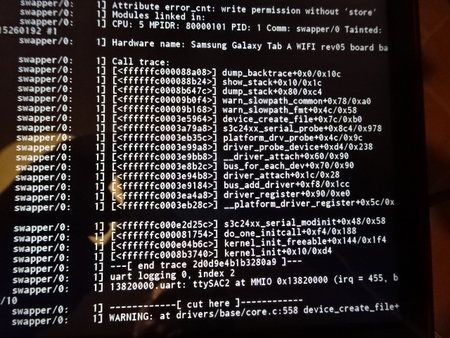

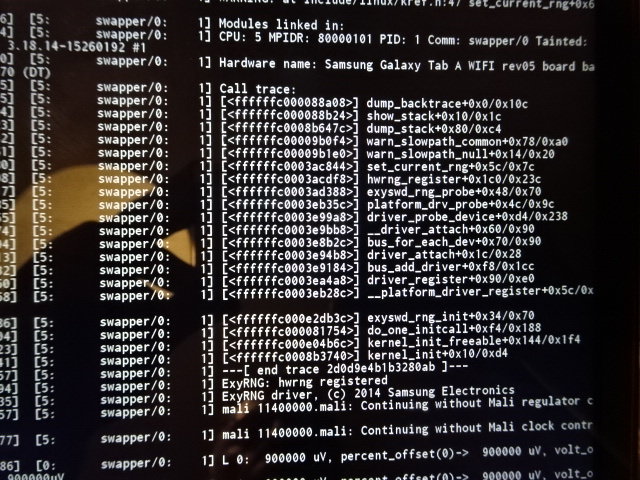

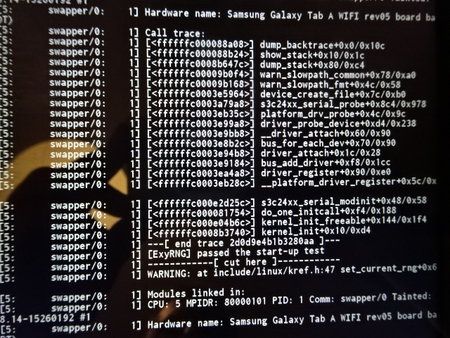

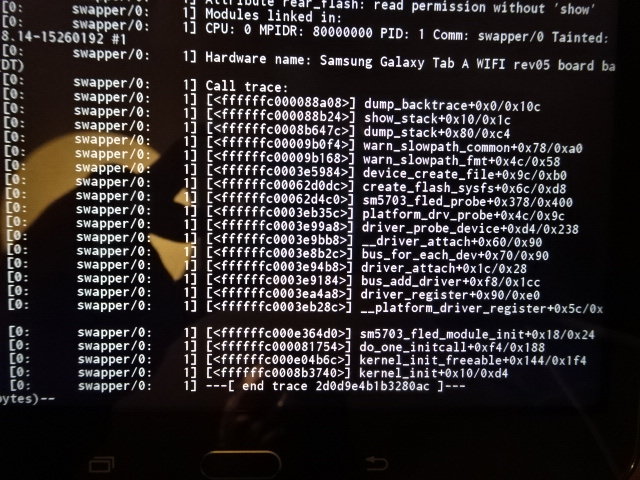

Hier die kernel traces und die Startmeldungen von Bootloader.
Folge dem Video um zu sehen, wie unsere Website als Web-App auf dem Startbildschirm installiert werden kann.
Anmerkung: Diese Funktion erfordert derzeit den Zugriff auf die Seite über den integrierten Safari-Browser.
gtaxlwifi:/ $ dmesg | grep -i bt
[ 261.114646] [0: stack_manager: 7962] [c0] bluetooth_power: [BT] bluetooth_power will be off. release host wakelock in 1s
[ 261.237886] [0: hci_thread: 8098] [c0] set_wake_locked: [BT] set_wake_locked value = 1
[ 262.237982] I[0: swapper/0: 0] [c0] set_wake_locked: [BT] set_wake_locked value = 0
gtaxlwifi:/ $ dmesg | grep -i wifi
[ 281.228035] [4:irq/6-sm5703-mu: 1020] [c4] [SENSOR] sx9306_wifi_muic_notifier: TA/USB is inserted
[ 281.228162] [4:irq/6-sm5703-mu: 1020] [c4] [SENSOR] sx9306_wifi_set_offset_calibration: done
[ 281.228174] [4:irq/6-sm5703-mu: 1020] [c4] [SENSOR] sx9306_wifi_muic_notifier: dev=1, action=1
[ 281.295766] [4:irq/6-sm5703-mu: 1020] [c4] [SENSOR] sx9306_wifi_muic_notifier: TA/USB is removed
[ 281.295891] [4:irq/6-sm5703-mu: 1020] [c4] [SENSOR] sx9306_wifi_set_offset_calibration: done
[ 281.295904] [4:irq/6-sm5703-mu: 1020] [c4] [SENSOR] sx9306_wifi_muic_notifier: dev=1, action=0
[ 281.296107] [4:irq/6-sm5703-mu: 1020] [c4] [SENSOR] sx9306_wifi_muic_notifier: TA/USB is inserted
[ 281.296697] [4:irq/6-sm5703-mu: 1020] [c4] [SENSOR] sx9306_wifi_set_offset_calibration: done
[ 281.296711] [4:irq/6-sm5703-mu: 1020] [c4] [SENSOR] sx9306_wifi_muic_notifier: dev=1, action=1
[ 284.952821] [0:WifiStateMachin: 7799] [c0] calling hdd_module_init+0x0/0x1ec [wlan] @ 7799
[ 284.952845] [0:WifiStateMachin: 7799] [c0] wlan: loading driver v4.0.10.205P_0204
[ 284.964981] [0:WifiStateMachin: 7799] [c0] wlan_platform_sdio_enumerate: notify_func=ffffffc000609d8c, mmc_host_dev=ffffffc07acda818, device_present=1
[ 284.964998] [0:WifiStateMachin: 7799] [c0] card inserted
[ 284.965048] [0:WifiStateMachin: 7799] [c0] cnss_sdio: driver successfully registered
[ 285.894626] [2:WifiStateMachin: 7799] [c2] dwmmc_exynos 13550000.dwmmc1: Data[0]: data is busy
[ 285.904637] [2:WifiStateMachin: 7799] [c2] ar6k_wlan: probe of mmc1:0001:1 failed with error -131
[ 285.904894] [2:WifiStateMachin: 7799] [c2] ath_hif_sdio: HIF (Atheros/multi-bss)
[ 315.904681] [2:WifiStateMachin: 7799] [c2] wlan: [7799:F :HDD] hdd_driver_init: timed-out waiting for hif_register_driver
[ 315.904701] [2:WifiStateMachin: 7799] [c2] wlan: [7799:F :HDD] hdd_driver_init: WLAN Driver Initialization failed
[ 315.904713] [2:WifiStateMachin: 7799] [c2] AR6000: Unregistering with the bus driver
[ 315.904810] [2:WifiStateMachin: 7799] [c2] AR6000: Unregistered!
[ 315.904823] [2:WifiStateMachin: 7799] wlan_platform_sdio_enumerate: notify_func=ffffffc000609d8c, mmc_host_dev=ffffffc07acda818, device_present=0
[ 315.904833] [2:WifiStateMachin: 7799] [c2] card removed
[ 315.934710] [3:WifiStateMachin: 7799] [c3] wlan: driver load failure
[ 315.934916] [3:WifiStateMachin: 7799] [c3] initcall hdd_module_init+0x0/0x1ec [wlan] returned -19 after 30255746 usecs
[ 315.982546] [3:WifiStateMachin: 7799] [c3] TIMA: lkmauth--launch the tl to check kernel module; module len is 6081456
[ 316.006144] [2:WifiStateMachin: 7799] [c2] TIMA: lkmauth--wait_notify completed.
[ 316.006480] [2:WifiStateMachin: 7799] [c2] TIMA: lkmauth--section verification succeeded idx : 0
[ 316.028765] [3:WifiStateMachin: 7799] [c3] TIMA: lkmauth--wait_notify completed.
[ 316.029154] [3:WifiStateMachin: 7799] [c3] TIMA: lkmauth--section verification succeeded idx : 1
[ 316.050769] [1:WifiStateMachin: 7799] [c1] TIMA: lkmauth--wait_notify completed.
[ 316.051093] [1:WifiStateMachin: 7799] [c1] TIMA: lkmauth--section verification succeeded idx : 2
[ 316.072617] [2:WifiStateMachin: 7799] [c2] TIMA: lkmauth--wait_notify completed.
[ 316.072988] [3:WifiStateMachin: 7799] [c3] TIMA: lkmauth--section verification succeeded idx : 3
[ 316.094626] [2:WifiStateMachin: 7799] [c2] TIMA: lkmauth--wait_notify completed.
[ 316.094941] [2:WifiStateMachin: 7799] [c2] TIMA: lkmauth--section verification succeeded idx : 4
[ 316.112429] [2:WifiStateMachin: 7799] [c2] TIMA: lkmauth--wait_notify completed.
[ 316.112708] [2:WifiStateMachin: 7799] [c2] TIMA: lkmauth--section verification succeeded idx : 5
[ 316.112720] [2:WifiStateMachin: 7799] [c2] TIMA: lkmauth--verification succeeded.
[ 320.911145] [3:WifiStateMachin: 7799] [c3] TIMA: lkmauth--launch the tl to check kernel module; module len is 6081456
[ 320.934674] [3:WifiStateMachin: 7799] [c3] TIMA: lkmauth--wait_notify completed.
[ 320.935049] [3:WifiStateMachin: 7799] [c3] TIMA: lkmauth--section verification succeeded idx : 0
[ 320.957561] [2:WifiStateMachin: 7799] [c2] TIMA: lkmauth--wait_notify completed.
[ 320.957896] [2:WifiStateMachin: 7799] [c2] TIMA: lkmauth--section verification succeeded idx : 1
[ 320.979751] [1:WifiStateMachin: 7799] [c1] TIMA: lkmauth--wait_notify completed.
[ 320.980138] [2:WifiStateMachin: 7799] [c2] TIMA: lkmauth--section verification succeeded idx : 2
[ 321.002042] [3:WifiStateMachin: 7799] [c3] TIMA: lkmauth--wait_notify completed.
[ 321.002445] [3:WifiStateMachin: 7799] [c3] TIMA: lkmauth--section verification succeeded idx : 3
[ 321.024150] [3:WifiStateMachin: 7799] [c3] TIMA: lkmauth--wait_notify completed.
[ 321.024505] [3:WifiStateMachin: 7799] [c3] TIMA: lkmauth--section verification succeeded idx : 4
[ 321.042273] [3:WifiStateMachin: 7799] [c3] TIMA: lkmauth--wait_notify completed.
[ 321.042588] [3:WifiStateMachin: 7799] [c3] TIMA: lkmauth--section verification succeeded idx : 5
[ 321.042600] [3:WifiStateMachin: 7799] [c3] TIMA: lkmauth--verification succeeded.
Warum auch nicht.starbright schrieb:seltsamerweise zeigt lsmod den wlandriver an.
[ 345.563002] [1: healthd: 2402] [c1] BatteryPropertiesRegistrar: notifyListeners : start
[ 345.563021] [1: healthd: 2402] [c1] IBatteryPropertiesListener : batteryPropertiesChanged!
[ 345.563021] [1: healthd: 2402] : BatteryPropertiesRegistrar: notifyListeners : done
[ 345.563254] [0: Binder:7576_3: 7834] [c0] !@BatteryListener : batteryPropertiesChanged!
[ 345.884540] [3: macloader: 2484] [c3] wlan: [2484:F :HDD] hdd_driver_init: timed-out waiting for hif_register_driver
[ 345.884560] [3: macloader: 2484] [c3] wlan: [2484:F :HDD] hdd_driver_init: WLAN Driver Initialization failed
[ 345.884572] [3: macloader: 2484] [c3] AR6000: Unregistering with the bus driver
[ 345.884669] [3: macloader: 2484] [c3] AR6000: Unregistered!
[ 345.884682] [3: macloader: 2484] wlan_platform_sdio_enumerate: notify_func=ffffffc000609d8c, mmc_host_dev=ffffffc07b149818, device_present=0
[ 345.884693] [3: macloader: 2484] [c3] card removed
[ 345.884893] [3: kworker/3:0: 25] [c3] mmc_host mmc1: card removed
[ 345.885011] [0: kworker/u16:2: 1265] [c0] mmc_rescan ,Index:mmc1, rescan_disable:0, rescan_entered:1
[ 345.914557] [1: macloader: 2484] [c1] wlan: driver load failure
[ 345.914762] [1: macloader: 2484] [c1] initcall hdd_module_init+0x0/0x1ec [wlan] returned -19 after 30243635 usecs
[ 345.972273] [3:WifiStateMachin: 7890] [c3] calling hdd_module_init+0x0/0x1ec [wlan] @ 7890
[ 345.972297] [3:WifiStateMachin: 7890] [c3] wlan: loading driver v4.0.10.205P_0204
[ 345.984466] [3:WifiStateMachin: 7890] [c3] wlan_platform_sdio_enumerate: notify_func=ffffffc000609d8c, mmc_host_dev=ffffffc07b149818, device_present=1
[ 345.984482] [3:WifiStateMachin: 7890] [c3] card inserted
[ 345.984514] [3: kworker/3:0: 25] [c3] mmc_host mmc1: card inserted
[ 345.984544] [3:WifiStateMachin: 7890] [c3] cnss_sdio: driver successfully registered
[ 346.075824] [3: iod: 3449] [c3] !@ 179,0 r 14418 947666 w 4512 104564 d 1231 33496 f 1529 1531 iot 12420 11655 th 51200 0 0 pt 0 inp 0 0 346.070
[ 346.084482] [2: kworker/u16:2: 1265] [c2] dwmmc_exynos 13550000.dwmmc1: Data[0]: data is busy
[ 346.294484] [2: kworker/u16:2: 1265] [c2] dwmmc_exynos 13550000.dwmmc1: Data[0]: data is busy
[ 346.304527] [2: kworker/u16:2: 1265] [c2] mmc_rescan ,Index:mmc1, rescan_disable:0, rescan_entered:1
[ 346.458964] [6: init: 1] [c6] init: Service 'macloader' (pid 2484) exited with status 0
[ 346.504506] [1: kworker/u16:2: 1265] [c1] dwmmc_exynos 13550000.dwmmc1: Data[0]: data is busy
[ 346.714481] [1: kworker/u16:2: 1265] [c1] dwmmc_exynos 13550000.dwmmc1: Data[0]: data is busy
[ 346.924482] [3:WifiStateMachin: 7890] [c3] dwmmc_exynos 13550000.dwmmc1: Data[0]: data is busy
[ 346.934481] [3:WifiStateMachin: 7890] [c3] ar6k_wlan: probe of mmc1:0001:1 failed with error -131
[ 346.934664] [3:WifiStateMachin: 7890] [c3] ath_hif_sdio: HIF (Atheros/multi-bss)
So habe ich es verstanden. Mit dem PIT File wird ja die neue Partitionstabelle für das Gerät angelegt. Quasi der Ursprungszustand wenn beim Flashen mal was schiefgegangen ist. Früher gabs auch modifizierte PIT Files wo man mit den Größen der Partitionen ein wenig gespielt hat um für User mehr rauszuholen. Speicher war ja früher immer begrenzt. Heute ja nicht mehr wirklich.starbright schrieb:Also Pit extrahieren und dann mit dieser die 3 files flashen?
