Benz ist dir aufgefallen dass das Xelio image anders ist.

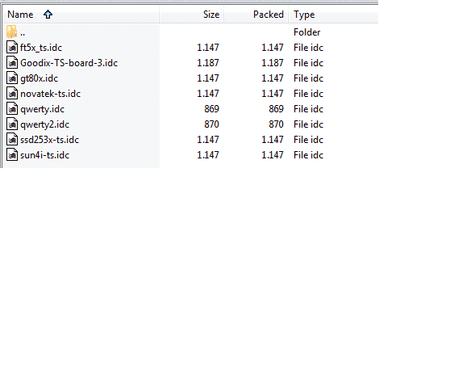

Ich glaube es sind noch reste von anderen firmwares drauf.
Ich glaube es sind noch reste von anderen firmwares drauf.
Folge dem Video um zu sehen, wie unsere Website als Web-App auf dem Startbildschirm installiert werden kann.
Anmerkung: Diese Funktion erfordert derzeit den Zugriff auf die Seite über den integrierten Safari-Browser.
spar-dose schrieb:Diesen OTG hab ich bestellt denke es kommt Morgen
# Basic Parameters
touch.deviceType = touchScreen
touch.orientationAware = 1
dumpsys window
dumpsys window
WINDOW MANAGER INPUT (dumpsys window input)
Event Hub State:
BuiltInKeyboardId: -1
Devices:
2: ft5x_ts
Classes: 0x00000015
Path: /dev/input/event2
Location:
UniqueId:
Identifier: bus=0x0000, vendor=0x0000, product=0x0000, version=0x0000
KeyLayoutFile: /system/usr/keylayout/Generic.kl
KeyCharacterMapFile: /system/usr/keychars/Generic.kcm
ConfigurationFile: /system/usr/idc/ft5x_ts.idc
3: sun4i-keyboard
Classes: 0x00000001
Path: /dev/input/event0
Location: sun4ikbd/input0
UniqueId:
Identifier: bus=0x0019, vendor=0x0001, product=0x0001, version=0x0100
KeyLayoutFile: /system/usr/keylayout/sun4i-keyboard.kl
KeyCharacterMapFile: /system/usr/keychars/Generic.kcm
ConfigurationFile:
4: axp20-supplyer
Classes: 0x00000001
Path: /dev/input/event1
Location: m1kbd/input2
UniqueId:
Identifier: bus=0x0019, vendor=0x0001, product=0x0001, version=0x0100
KeyLayoutFile: /system/usr/keylayout/axp20-supplyer.kl
KeyCharacterMapFile: /system/usr/keychars/Generic.kcm
ConfigurationFile:
Input Reader State:
Device 2: ft5x_ts
IsExternal: false
Sources: 0x00001103
KeyboardType: 1
Motion Ranges:
X: source=0x00001002, min=0.000, max=799.001, flat=0.000, fuzz=0.999
Y: source=0x00001002, min=0.000, max=479.002, flat=0.000, fuzz=0.998
PRESSURE: source=0x00001002, min=0.000, max=1.000, flat=0.000, fuzz=0.000
SIZE: source=0x00001002, min=0.000, max=1.000, flat=0.000, fuzz=0.000
TOUCH_MAJOR: source=0x00001002, min=0.000, max=932.952, flat=0.000, fuzz=0.000
TOUCH_MINOR: source=0x00001002, min=0.000, max=932.952, flat=0.000, fuzz=0.000
TOOL_MAJOR: source=0x00001002, min=0.000, max=932.952, flat=0.000, fuzz=0.000
TOOL_MINOR: source=0x00001002, min=0.000, max=932.952, flat=0.000, fuzz=0.000
Keyboard Input Mapper:
Parameters:
AssociatedDisplayId: -1
OrientationAware: false
KeyboardType: 1
Orientation: 0
KeyDowns: 0 keys currently down
MetaState: 0x0
DownTime: 0
Touch Input Mapper:
Parameters:
GestureMode: spots
DeviceType: touchScreen
AssociatedDisplay: id=0, isExternal=false
OrientationAware: true
Raw Touch Axes:
X: min=0, max=800, flat=0, fuzz=0, resolution=0
Y: min=0, max=480, flat=0, fuzz=0, resolution=0
Pressure: unknown range
TouchMajor: min=0, max=255, flat=0, fuzz=0, resolution=0
TouchMinor: unknown range
ToolMajor: min=0, max=200, flat=0, fuzz=0, resolution=0
ToolMinor: unknown range
Orientation: unknown range
Distance: unknown range
TiltX: unknown range
TiltY: unknown range
TrackingId: min=0, max=10, flat=0, fuzz=0, resolution=0
Slot: unknown range
Calibration:
touch.size.calibration: diameter
touch.size.scale: 10.000
touch.size.bias: 0.000
touch.size.isSummed: false
touch.pressure.calibration: none
touch.pressure.scale: 0.005
touch.orientation.calibration: none
touch.distance.calibration: none
SurfaceWidth: 800px
SurfaceHeight: 480px
SurfaceOrientation: 0
Translation and Scaling Factors:
XScale: 0.999
YScale: 0.998
XPrecision: 1.001
YPrecision: 1.002
GeometricScale: 0.998
PressureScale: 0.000
SizeScale: 0.004
OrientationCenter: 0.000
OrientationScale: 0.000
DistanceScale: 0.000
HaveTilt: false
TiltXCenter: 0.000
TiltXScale: 0.000
TiltYCenter: 0.000
TiltYScale: 0.000
Last Button State: 0x00000000
Last Raw Touch: pointerCount=0
Last Cooked Touch: pointerCount=0
Device 3: sun4i-keyboard
IsExternal: false
Sources: 0x00000101
KeyboardType: 1
Keyboard Input Mapper:
Parameters:
AssociatedDisplayId: -1
OrientationAware: false
KeyboardType: 1
Orientation: 0
KeyDowns: 0 keys currently down
MetaState: 0x0
DownTime: 272534037000
Device 4: axp20-supplyer
IsExternal: false
Sources: 0x00000101
KeyboardType: 1
Keyboard Input Mapper:
Parameters:
AssociatedDisplayId: -1
OrientationAware: false
KeyboardType: 1
Orientation: 0
KeyDowns: 0 keys currently down
MetaState: 0x0
DownTime: 0
Configuration:
ExcludedDeviceNames: []
VirtualKeyQuietTime: 0.0ms
PointerVelocityControlParameters: scale=1.000, lowThreshold=500.000, highThreshold=3000.000, acceleration=3.000
WheelVelocityControlParameters: scale=1.000, lowThreshold=15.000, highThreshold=50.000, acceleration=4.000
PointerGesture:
Enabled: true
QuietInterval: 100.0ms
DragMinSwitchSpeed: 50.0px/s
TapInterval: 150.0ms
TapDragInterval: 300.0ms
TapSlop: 20.0px
MultitouchSettleInterval: 100.0ms
MultitouchMinDistance: 15.0px
SwipeTransitionAngleCosine: 0.3
SwipeMaxWidthRatio: 0.2
MovementSpeedRatio: 0.8
ZoomSpeedRatio: 0.3
Input Dispatcher State:
DispatchEnabled: 1
DispatchFrozen: 0
FocusedApplication: name='AppWindowToken{411e95f8 token=Token{412c5248 ActivityRecord{41021578 com.android.launcher/com.android.launcher2.Launcher}}}', dispatchingTimeout=5000.000ms
FocusedWindow: name='Window{410d8c60 com.android.launcher/com.android.launcher2.Launcher paused=false}'
TouchDown: false
TouchSplit: false
TouchDeviceId: -1
TouchSource: 0x00000000
TouchedWindows: <none>
Windows:
0: name='Window{411f4238 CompatModePanel paused=false}', paused=false, hasFocus=false, hasWallpaper=false, visible=false, canReceiveKeys=false, flags=0x01820100, type=0x000007de, layer=151015, frame=[800,480][800,480], scale=1.000000, touchableRegion=<empty>, inputFeatures=0x00000000, ownerPid=288, ownerUid=1000, dispatchingTimeout=5000.000ms
1: name='Window{4125bd20 InputMethodsPanel paused=false}', paused=false, hasFocus=false, hasWallpaper=false, visible=false, canReceiveKeys=false, flags=0x01820100, type=0x000007de, layer=151010, frame=[800,480][800,480], scale=1.000000, touchableRegion=<empty>, inputFeatures=0x00000000, ownerPid=288, ownerUid=1000, dispatchingTimeout=5000.000ms
2: name='Window{4120ce88 RecentsPanel paused=false}', paused=false, hasFocus=false, hasWallpaper=false, visible=false, canReceiveKeys=false, flags=0x01820100, type=0x000007de, layer=151005, frame=[0,0][450,480], scale=1.000000, touchableRegion=[0,0][450,480], inputFeatures=0x00000000, ownerPid=288, ownerUid=1000, dispatchingTimeout=5000.000ms
3: name='Window{410d3b28 NotificationPanel paused=false}', paused=false, hasFocus=false, hasWallpaper=false, visible=false, canReceiveKeys=false, flags=0x01820300, type=0x000007de, layer=151000, frame=[416,-98][800,480], scale=1.000000, touchableRegion=[416,-98][800,480], inputFeatures=0x00000000, ownerPid=288, ownerUid=1000, dispatchingTimeout=5000.000ms
4: name='Window{41217850 StatusBar paused=false}', paused=false, hasFocus=false, hasWallpaper=false, visible=true, canReceiveKeys=false, flags=0x00800048, type=0x000007d0, layer=141000, frame=[0,444][800,480], scale=1.000000, touchableRegion=[0,444][800,480], inputFeatures=0x00000000, ownerPid=288, ownerUid=1000, dispatchingTimeout=5000.000ms
5: name='Window{410d8c60 com.android.launcher/com.android.launcher2.Launcher paused=false}', paused=false, hasFocus=true, hasWallpaper=true, visible=true, canReceiveKeys=true, flags=0x09110100, type=0x00000001, layer=21005, frame=[0,0][800,444], scale=1.000000, touchableRegion=[0,0][800,444], inputFeatures=0x00000000, ownerPid=1121, ownerUid=10023, dispatchingTimeout=5000.000ms
6: name='Window{41018628 com.android.systemui.ImageWallpaper paused=false}', paused=false, hasFocus=false, hasWallpaper=false, visible=true, canReceiveKeys=false, flags=0x00000318, type=0x000007dd, layer=21000, frame=[0,0][1216,800], scale=1.000000, touchableRegion=[0,0][1216,800], inputFeatures=0x00000000, ownerPid=288, ownerUid=1000, dispatchingTimeout=5000.000ms
MonitoringChannels: <none>
InboundQueue: length=0
ActiveConnections: <none>
AppSwitch: not pending
Configuration:
MaxEventsPerSecond: 90
KeyRepeatDelay: 50.0ms
KeyRepeatTimeout: 500.0ms
WINDOW MANAGER POLICY STATE (dumpsys window policy)
mSafeMode=false mSystemReady=true mSystemBooted=true
mLidOpen=-1 mLidOpenRotation=1 mHdmiPlugged=false
mLastFocusNeedsMenu=true
mUiMode=1 mDockMode=0 mCarDockRotation=-1 mDeskDockRotation=-1
mUserRotationMode=0 mUserRotation=0 mAllowAllRotations=1
mAccelerometerDefault=1 mCurrentAppOrientation=-1
mCarDockEnablesAccelerometer=true mDeskDockEnablesAccelerometer=false
mLidKeyboardAccessibility=1 mLidNavigationAccessibility=0 mLongPressOnPowerBehavior=-1
mScreenOnEarly=true mScreenOnFully=true mOrientationSensorEnabled=true mHasSoftInput=true
mUnrestrictedScreen=(0,0) 800x480
mRestrictedScreen=(0,0) 800x444
mCur=(0,0)-(800,444)
mContent=(0,0)-(800,444)
mDock=(0,0)-(800,444)
mDockLayer=268435456
mTopFullscreenOpaqueWindowState=Window{410d8c60 com.android.launcher/com.android.launcher2.Launcher paused=false}
mTopIsFullscreen=false mForceStatusBar=false mHideLockScreen=false
mDismissKeyguard=false mHomePressed=false
mAllowLockscreenWhenOn=false mLockScreenTimeout=120000 mLockScreenTimerActive=false
mEndcallBehavior=2 mIncallPowerBehavior=1 mLongPressOnHomeBehavior=-1
mLandscapeRotation=0 mSeascapeRotation=2
mPortraitRotation=3 mUpsideDownRotation=1
WINDOW MANAGER SESSIONS (dumpsys window sessions)
Session Session{410df598 uid 1000}:
mNumWindow=0 mClientDead=false mSurfaceSession=android.view.SurfaceSession@40f9e860
Session Session{41361508 uid 10023}:
mNumWindow=1 mClientDead=false mSurfaceSession=android.view.SurfaceSession@41258c98
Session Session{410d3588 uid 1000}:
mNumWindow=6 mClientDead=false mSurfaceSession=android.view.SurfaceSession@40ff4880
Session Session{41352d20 uid 1000}:
mNumWindow=0 mClientDead=false mSurfaceSession=android.view.SurfaceSession@412672d8
WINDOW MANAGER TOKENS (dumpsys window tokens)
All tokens:
Token null
Token android.os.Binder@4117b7b0
Token android.os.Binder@41235458
Token Token{412c5248 ActivityRecord{41021578 com.android.launcher/com.android.launcher2.Launcher}}
Wallpaper tokens:
Wallpaper #0 WindowToken{41241c08 token=android.os.Binder@41235458}
Application tokens in Z order:
App #0: AppWindowToken{411e95f8 token=Token{412c5248 ActivityRecord{41021578 com.android.launcher/com.android.launcher2.Launcher}}}
WINDOW MANAGER WINDOWS (dumpsys window windows)
Window #6 Window{411f4238 CompatModePanel paused=false}:
mSession=Session{410d3588 uid 1000} mClient=android.os.BinderProxy@41185788
mAttrs=WM.LayoutParams{(0,0)(250xwrap) gr=#55 sim=#20 ty=2014 fl=#1820100 fmt=-3 wanim=0x1030002}
Requested w=250 h=116 mLayoutSeq=4
mShownFrame=[0.0,0.0][0.0,0.0]
Window #5 Window{4125bd20 InputMethodsPanel paused=false}:
mSession=Session{410d3588 uid 1000} mClient=android.os.BinderProxy@40fc4ff0
mAttrs=WM.LayoutParams{(0,0)(wrapxwrap) gr=#55 sim=#20 ty=2014 fl=#1820100 fmt=-3 wanim=0x7f0c0008}
Requested w=353 h=480 mLayoutSeq=4
mShownFrame=[0.0,0.0][0.0,0.0]
Window #4 Window{4120ce88 RecentsPanel paused=false}:
mSession=Session{410d3588 uid 1000} mClient=android.os.BinderProxy@4135c0a0
mAttrs=WM.LayoutParams{(0,0)(450xfill) gr=#53 sim=#31 ty=2014 fl=#1820100 fmt=-3 wanim=0x7f0c0008}
Requested w=450 h=480 mLayoutSeq=44
mShownFrame=[0.0,0.0][450.0,480.0]
Window #3 Window{410d3b28 NotificationPanel paused=false}:
mSession=Session{410d3588 uid 1000} mClient=android.os.BinderProxy@410d3878
mAttrs=WM.LayoutParams{(0,0)(384x578) gr=#55 sim=#31 ty=2014 fl=#1820300 fmt=-3 wanim=0x1030000}
Requested w=384 h=578 mLayoutSeq=122
mShownFrame=[416.0,-98.0][800.0,480.0]
Window #2 Window{41217850 StatusBar paused=false}:
mSession=Session{410d3588 uid 1000} mClient=android.os.BinderProxy@41217678
mAttrs=WM.LayoutParams{(0,0)(fillx36) gr=#57 sim=#20 ty=2000 fl=#800048 fmt=4 wanim=0x7f0c0009}
Requested w=800 h=36 mLayoutSeq=137
Surface: shown=true layer=141000 alpha=1.0 rect=(0.0,444.0) 800.0 x 36.0
mShownFrame=[0.0,444.0][800.0,480.0]
Window #1 Window{410d8c60 com.android.launcher/com.android.launcher2.Launcher paused=false}:
mSession=Session{41361508 uid 10023} mClient=android.os.BinderProxy@412fe870
mAttrs=WM.LayoutParams{(0,0)(fillxfill) sim=#120 ty=1 fl=#9110100 pfl=0x8 fmt=-2 wanim=0x1030292}
Requested w=800 h=444 mLayoutSeq=137
Surface: shown=true layer=21005 alpha=1.0 rect=(0.0,0.0) 800.0 x 444.0
mShownFrame=[0.0,0.0][800.0,444.0]
mWallpaperX=0.5004112 mWallpaperY=0.5
mWallpaperXStep=0.25 mWallpaperYStep=1.0
Window #0 Window{41018628 com.android.systemui.ImageWallpaper paused=false}:
mSession=Session{410d3588 uid 1000} mClient=android.os.BinderProxy@40fc2090
mAttrs=WM.LayoutParams{(0,0)(1216x800) gr=#33 ty=2013 fl=#318 fmt=2 wanim=0x10301e4}
Requested w=1216 h=800 mLayoutSeq=137
mIsImWindow=false mIsWallpaper=true mIsFloatingLayer=true mWallpaperVisible=true
Surface: shown=true layer=21000 alpha=1.0 rect=(-208.0,-178.0) 1216.0 x 800.0
Offsets x=-208 y=-178
mShownFrame=[-208.0,-178.0][1008.0,622.0]
mAnimating=false mLocalAnimating=false mAnimationIsEntrance=true mAnimation=null
mWallpaperX=0.5004112 mWallpaperY=0.5
mWallpaperXStep=0.25 mWallpaperYStep=1.0
Display: init=800x480 base=800x480 cur=800x480 app=800x444 raw=800x480
mCurConfiguration={1.0 0mcc0mnc de_DE layoutdir=0 sw640dp w1066dp h592dp lrg land finger -keyb/v/h -nav/h s.3}
mCurrentFocus=Window{410d8c60 com.android.launcher/com.android.launcher2.Launcher paused=false}
mFocusedApp=AppWindowToken{411e95f8 token=Token{412c5248 ActivityRecord{41021578 com.android.launcher/com.android.launcher2.Launcher}}}
mInTouchMode=true mLayoutSeq=137
spar-dose schrieb:Das kam Raus
BenZ schrieb:Habe die beiden auszüge mal verglichen von spar-dos und mir ,dam sind schon einige unterschiede drin .
Oma7144 schrieb:Das ist das Gerät:
2: ft5x_ts
Classes: 0x00000015
Path: /dev/input/event2
Identifier: bus=0x0000, vendor=0x0000, product=0x0000, version=0x0000
KeyLayoutFile: /system/usr/keylayout/Generic.kl
KeyCharacterMapFile: /system/usr/keychars/Generic.kcm
ConfigurationFile: /system/usr/idc/ft5x_ts.idc
Und so verhält es sich:
Device 2: ft5x_ts
IsExternal: false
Sources: 0x00001103
KeyboardType: 1
GestureMode: spots
DeviceType: touchScreen
SurfaceWidth: 800px
SurfaceHeight: 480px
SurfaceOrientation: 0
Sieht für mich erst mal ok aus.
br3zzer schrieb:Habt ihr nach dem ihr mein Backup installiert habt noch mal Wipe cache/factory reset gemacht? Evtl sind ja noch reste vom alten System vorhanden welche man damit beseitigen könnte.
LouCipher schrieb:Erst waren (zumindest im Aurora) Hitachi-TS (goodix801) verbaut. Dann wurde umgestellt auf LG-TS (ft5x).
Oma7144 schrieb:Mach mal bitte ein Terminal auf und poste das Ergebnis (nur device 2) von :
dumpsys window
WINDOW MANAGER INPUT (dumpsys window input)
Event Hub State:
BuiltInKeyboardId: -1
Devices:
2: ft5x_ts
Classes: 0x00000015
Path: /dev/input/event2
Location:
UniqueId:
Identifier: bus=0x0000, vendor=0x0000, product=0x0000, version=0x0000
KeyLayoutFile: /system/usr/keylayout/Generic.kl
KeyCharacterMapFile: /system/usr/keychars/Generic.kcm
ConfigurationFile: /system/usr/idc/ft5x_ts.idc
Input Reader State:
Device 2: ft5x_ts
IsExternal: false
Sources: 0x00001103
KeyboardType: 1
Motion Ranges:
X: source=0x00001002, min=0.000, max=799.001, flat=0.000, fuzz=0.999
Y: source=0x00001002, min=0.000, max=479.002, flat=0.000, fuzz=0.998
PRESSURE: source=0x00001002, min=0.000, max=1.000, flat=0.000, fuzz=0.000
SIZE: source=0x00001002, min=0.000, max=1.000, flat=0.000, fuzz=0.000
TOUCH_MAJOR: source=0x00001002, min=0.000, max=932.952, flat=0.000, fuzz=0.000
TOUCH_MINOR: source=0x00001002, min=0.000, max=932.952, flat=0.000, fuzz=0.000
TOOL_MAJOR: source=0x00001002, min=0.000, max=932.952, flat=0.000, fuzz=0.000
TOOL_MINOR: source=0x00001002, min=0.000, max=932.952, flat=0.000, fuzz=0.000
Keyboard Input Mapper:
Parameters:
AssociatedDisplayId: -1
OrientationAware: false
KeyboardType: 1
Orientation: 0
KeyDowns: 0 keys currently down
MetaState: 0x0
DownTime: 0
Touch Input Mapper:
Parameters:
GestureMode: spots
DeviceType: touchScreen
AssociatedDisplay: id=0, isExternal=false
OrientationAware: true
Raw Touch Axes:
X: min=0, max=800, flat=0, fuzz=0, resolution=0
Y: min=0, max=480, flat=0, fuzz=0, resolution=0
Pressure: unknown range
TouchMajor: min=0, max=255, flat=0, fuzz=0, resolution=0
TouchMinor: unknown range
ToolMajor: min=0, max=200, flat=0, fuzz=0, resolution=0
ToolMinor: unknown range
Orientation: unknown range
Distance: unknown range
TiltX: unknown range
TiltY: unknown range
TrackingId: min=0, max=10, flat=0, fuzz=0, resolution=0
Slot: unknown range
Calibration:
touch.size.calibration: diameter
touch.size.scale: 10.000
touch.size.bias: 0.000
touch.size.isSummed: false
touch.pressure.calibration: none
touch.pressure.scale: 0.005
touch.orientation.calibration: none
touch.distance.calibration: none
SurfaceWidth: 800px
SurfaceHeight: 480px
SurfaceOrientation: 0
Translation and Scaling Factors:
XScale: 0.999
YScale: 0.998
XPrecision: 1.001
YPrecision: 1.002
GeometricScale: 0.998
PressureScale: 0.000
SizeScale: 0.004
OrientationCenter: 0.000
OrientationScale: 0.000
DistanceScale: 0.000
HaveTilt: false
TiltXCenter: 0.000
TiltXScale: 0.000
TiltYCenter: 0.000
TiltYScale: 0.000
Last Button State: 0x00000000
Last Raw Touch: pointerCount=0
Last Cooked Touch: pointerCount=0
