M
mickdry
Fortgeschrittenes Mitglied
- 62
jetzt wird es uns noch leichter gemacht, mit einem geeigneten
usb 3g dongle ins mobile internet zu kommen. einfach die datei
aus diesem link
xda-developers - View Single Post - [APP] 3G Toggler by Gnufabio and Roach2010
laden und installieren. soll bei jedem gerooteten tf funktionieren.
der stick muß aber wie folgt vorbereitet sein:
You can test this by plugging the stick into a PC and seeing if it detects the modem as a CD or Memory stick device as well as a modem.
If it does then the method I used to turn off the composite device (on Windows 7) was:
1) Install the software and drivers for the modem under windows and make sure that the connection software sees the modem correctly.
2) Go to Settings/Control Panel/Device Manager and if you expand the Modems section you should see your USB modem listed there
3) Double click on the entry for the modem to get the properties panel up and selected the Modem tab
4) You should see a line at the very top of the tab that says something like Port: COM11 - This is the virtual serial port that the PC uses to talk to the modem which we're going to use to send the command to turn off all the stuff we don't want.
5) Next we want to install a serial console application. PuTTY is perfect for this. If you don't have a copy you can get if from here,
http://www.chiark.greenend.org.uk/~s.../download.html

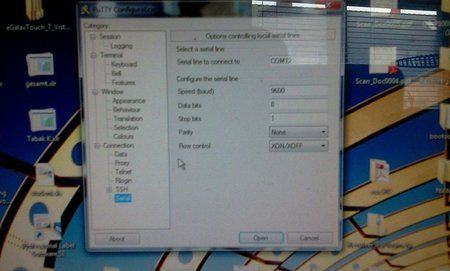

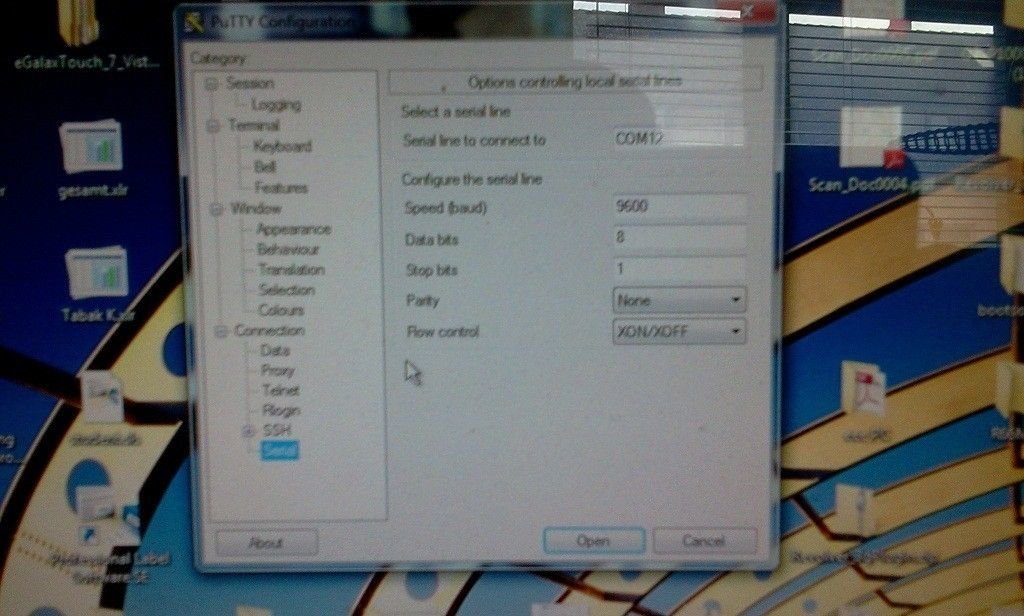

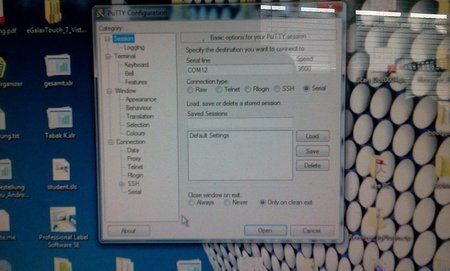

6) Run putty, select Serial under Connection Typem and enter the port we found in step 4 (eg COM11) into the box marked Serial Line and press the Open button
7) An empty window should pop up, which if things are working correctly is connected to the Modem
8) Type "ATI" into the window (without the quotes) and press return. The ATI command asks the modem for basic information and it should respond with something like
Manufacturer: huawei
Model: E1752
Revision: 11.126.03.01.314
IMEI: 123456789012345
+GCAP: +CGSM,+DS,+ES
OK
9) If you see this then you are connected correctly, if you don't see a response try physicaly unplugging and reconnecting the modem into a different USB port and start again from step 2 after windows has loaded the drivers for the modem.
10) Assuming everything is OK, the we can send the command to turn off the stuff we don't want. To do this simply type "AT^U2DIAG=0" (again without quotes) into the putty window. you should see the response OK.
11) If you do then the composite device features should now be turned off and you are ready to try the modem in your transformer.
werde ich demnächst mal eindeutschen. ist der thread von Kasimodo:
xda-developers - View Single Post - [HowTo] use 3G Dongle on TF101 *UPDATED 08/31*
usb 3g dongle ins mobile internet zu kommen. einfach die datei
aus diesem link
xda-developers - View Single Post - [APP] 3G Toggler by Gnufabio and Roach2010
laden und installieren. soll bei jedem gerooteten tf funktionieren.
der stick muß aber wie folgt vorbereitet sein:
You can test this by plugging the stick into a PC and seeing if it detects the modem as a CD or Memory stick device as well as a modem.
If it does then the method I used to turn off the composite device (on Windows 7) was:
1) Install the software and drivers for the modem under windows and make sure that the connection software sees the modem correctly.
2) Go to Settings/Control Panel/Device Manager and if you expand the Modems section you should see your USB modem listed there
3) Double click on the entry for the modem to get the properties panel up and selected the Modem tab
4) You should see a line at the very top of the tab that says something like Port: COM11 - This is the virtual serial port that the PC uses to talk to the modem which we're going to use to send the command to turn off all the stuff we don't want.
5) Next we want to install a serial console application. PuTTY is perfect for this. If you don't have a copy you can get if from here,
http://www.chiark.greenend.org.uk/~s.../download.html
6) Run putty, select Serial under Connection Typem and enter the port we found in step 4 (eg COM11) into the box marked Serial Line and press the Open button
7) An empty window should pop up, which if things are working correctly is connected to the Modem
8) Type "ATI" into the window (without the quotes) and press return. The ATI command asks the modem for basic information and it should respond with something like
Manufacturer: huawei
Model: E1752
Revision: 11.126.03.01.314
IMEI: 123456789012345
+GCAP: +CGSM,+DS,+ES
OK
9) If you see this then you are connected correctly, if you don't see a response try physicaly unplugging and reconnecting the modem into a different USB port and start again from step 2 after windows has loaded the drivers for the modem.
10) Assuming everything is OK, the we can send the command to turn off the stuff we don't want. To do this simply type "AT^U2DIAG=0" (again without quotes) into the putty window. you should see the response OK.
11) If you do then the composite device features should now be turned off and you are ready to try the modem in your transformer.
werde ich demnächst mal eindeutschen. ist der thread von Kasimodo:
xda-developers - View Single Post - [HowTo] use 3G Dongle on TF101 *UPDATED 08/31*
Zuletzt bearbeitet:
